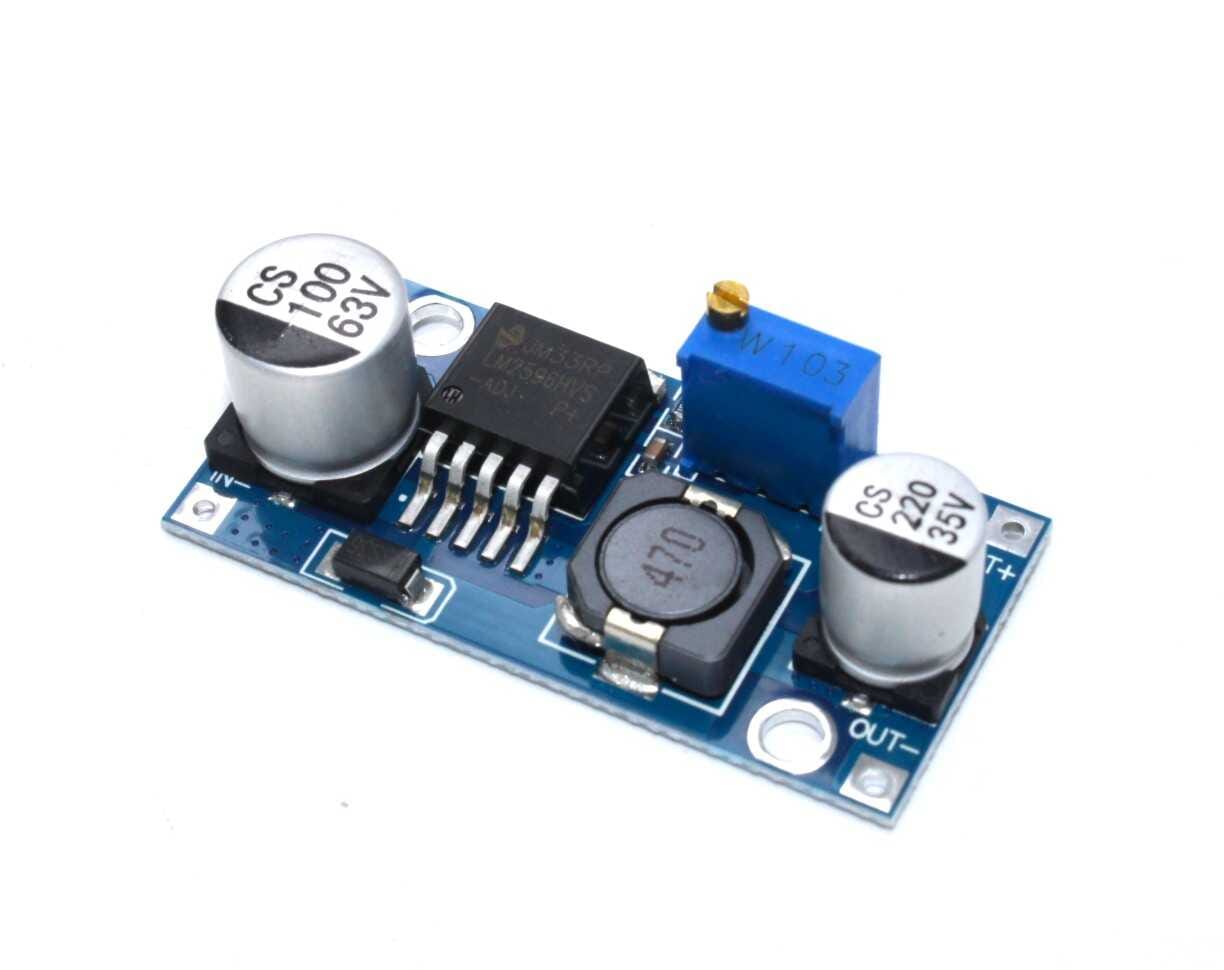

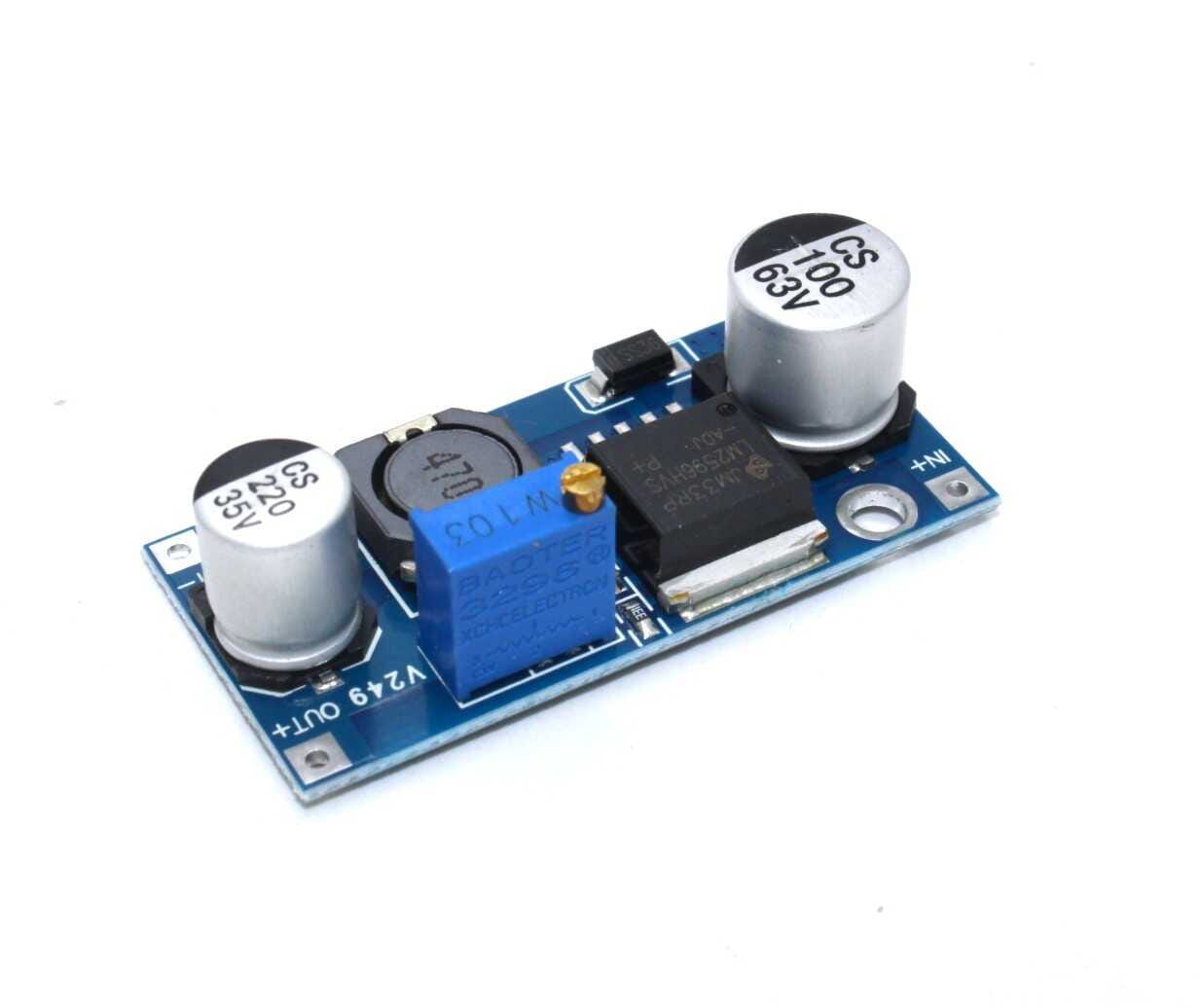

LM2596 DC-DC Step-Down Converter Module
The LM2596 DC-DC Buck Converter Module is a high-efficiency switching voltage regulator designed to convert a higher DC input voltage into a lower adjustable DC output voltage. It uses the LM2596 switching regulator IC and provides a compact, reliable, and efficient power supply solution for electronic projects.
This module accepts an input voltage from 4V to 40V DC and provides an adjustable output voltage from 1.25V to 35V DC using the onboard multi-turn potentiometer. It is widely used in Arduino projects, battery-powered devices, LED applications, and DIY power supplies.
Features
- Based on LM2596 switching regulator IC
- DC-DC Step-Down (Buck) converter
- Adjustable output voltage using multi-turn potentiometer
- Wide input voltage range: 4V – 40V DC
- Adjustable output voltage: 1.25V – 35V DC
- Maximum output current up to 3A
- Conversion efficiency up to 92%
- Low ripple output
- Compact PCB design
- Easy connection via IN+, IN−, OUT+, OUT− terminals
Technical Specifications
| Parameter | Details |
|---|---|
| Model | LM2596 |
| Converter Type | DC-DC Buck (Step-Down) |
| Input Voltage | 4V – 40V DC |
| Output Voltage | 1.25V – 35V Adjustable |
| Maximum Output Current | 3A |
| Conversion Efficiency | Up to 92% |
| Switching Frequency | 150 kHz |
| Operating Temperature | -40°C to +85°C |
| Output Adjustment | Multi-turn Potentiometer |
| Terminals | IN+, IN−, OUT+, OUT− |
Pin Description
- IN+ – Positive DC input voltage
- IN− – Negative input (Ground)
- OUT+ – Regulated lower output voltage
- OUT− – Ground output
Applications
- Arduino and microcontroller power supply
- Battery-powered projects
- LED lighting systems
- DIY variable power supplies
- Automotive electronics
- Solar projects
- Voltage regulation circuits
Package Includes
- 1 × LM2596 DC-DC Adjustable Buck Converter Module
