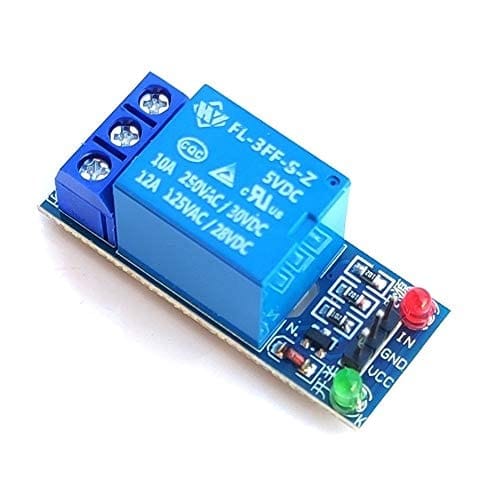

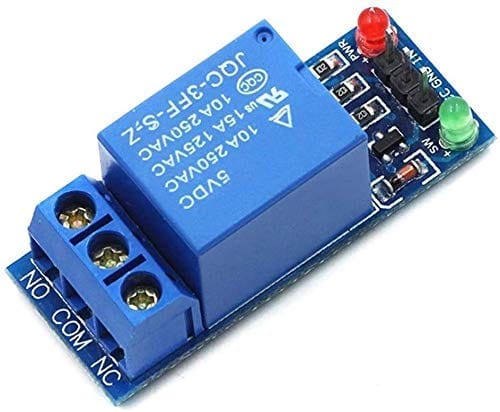

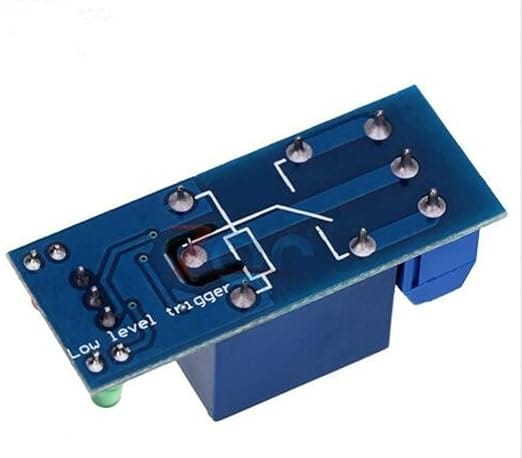

1 Channel 5V Relay Module for Electronics & Automation
The 1 Channel Relay Module (1CH) is a compact and reliable switching module designed to control high-voltage AC or DC loads using low-voltage microcontrollers. It is widely used with Arduino, Raspberry Pi, ESP8266, ESP32, and other development boards.
The module features a high-quality relay, transistor driver circuit, status LED indicator, and isolation design, allowing safe and efficient control of lights, fans, motors, pumps, and other electrical devices.
Features
- Single channel 5V relay module
- Compatible with Arduino, ESP8266, ESP32 & Raspberry Pi
- Can control AC and DC appliances
- LED indicator for power and relay status
- High/low-level trigger support (depending on model)
- Screw terminal connectors for easy wiring
- Transistor driver for reliable operation
- Compact PCB design for embedded projects
Applications
- Home automation systems
- Smart switches and IoT projects
- Arduino and robotics projects
- Motor and pump control
- Lighting control systems
- Industrial control circuits
- Security and alarm systems
Specifications
| Parameter | Details |
|---|---|
| Product Type | 1 Channel Relay Module |
| Operating Voltage | 5V DC |
| Relay Type | SPDT Electromagnetic Relay |
| Control Signal | Digital Input |
| Trigger Voltage | 5V Logic |
| Switching Capacity | Up to 10A 250VAC / 10A 30VDC (Relay Rating) |
| Interface | VCC, GND, IN |
| Indicators | Power LED & Status LED |
| Mounting | PCB Mount |
Package Includes
- 1 × 1 Channel 5V Relay Module
