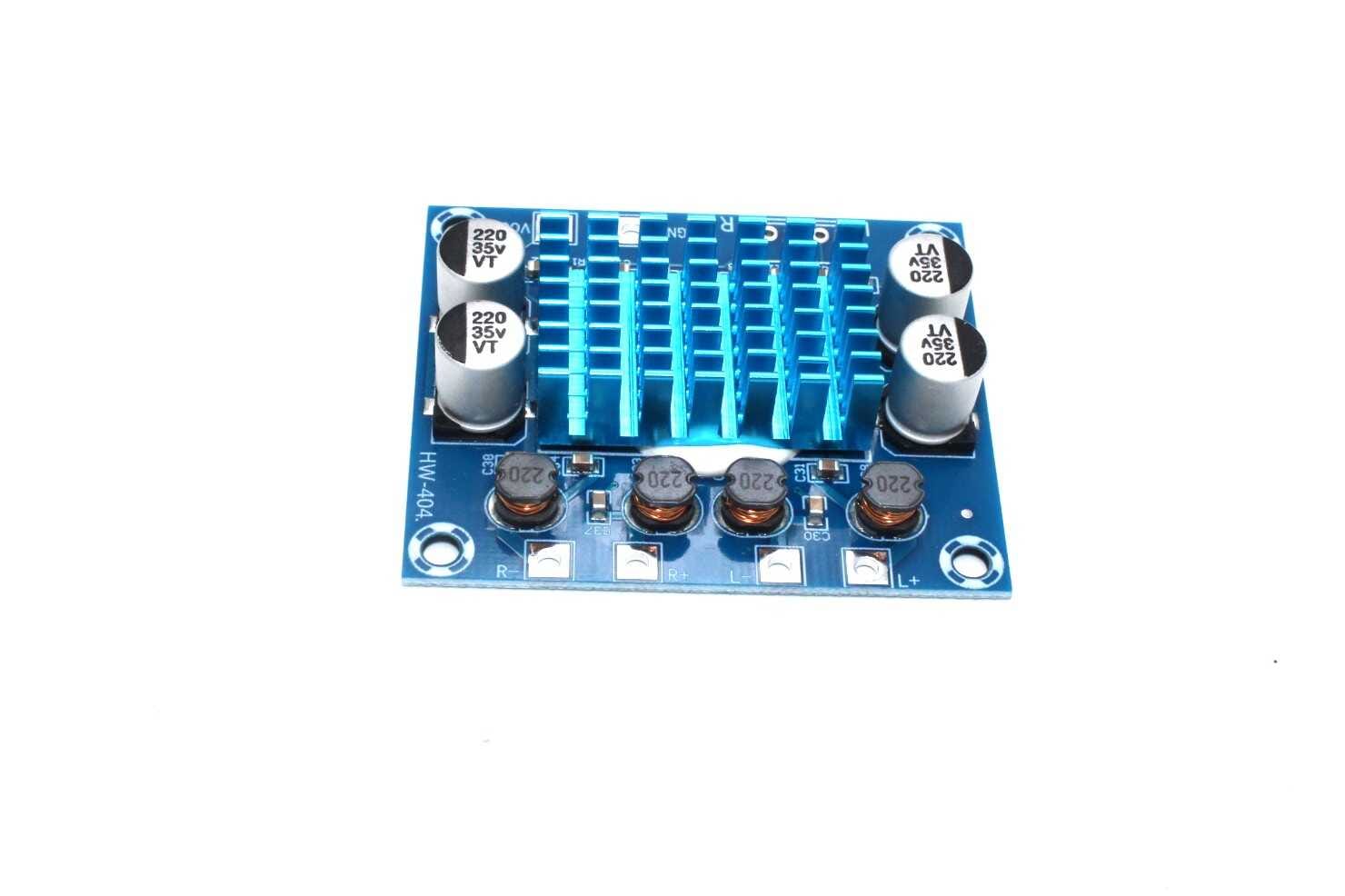

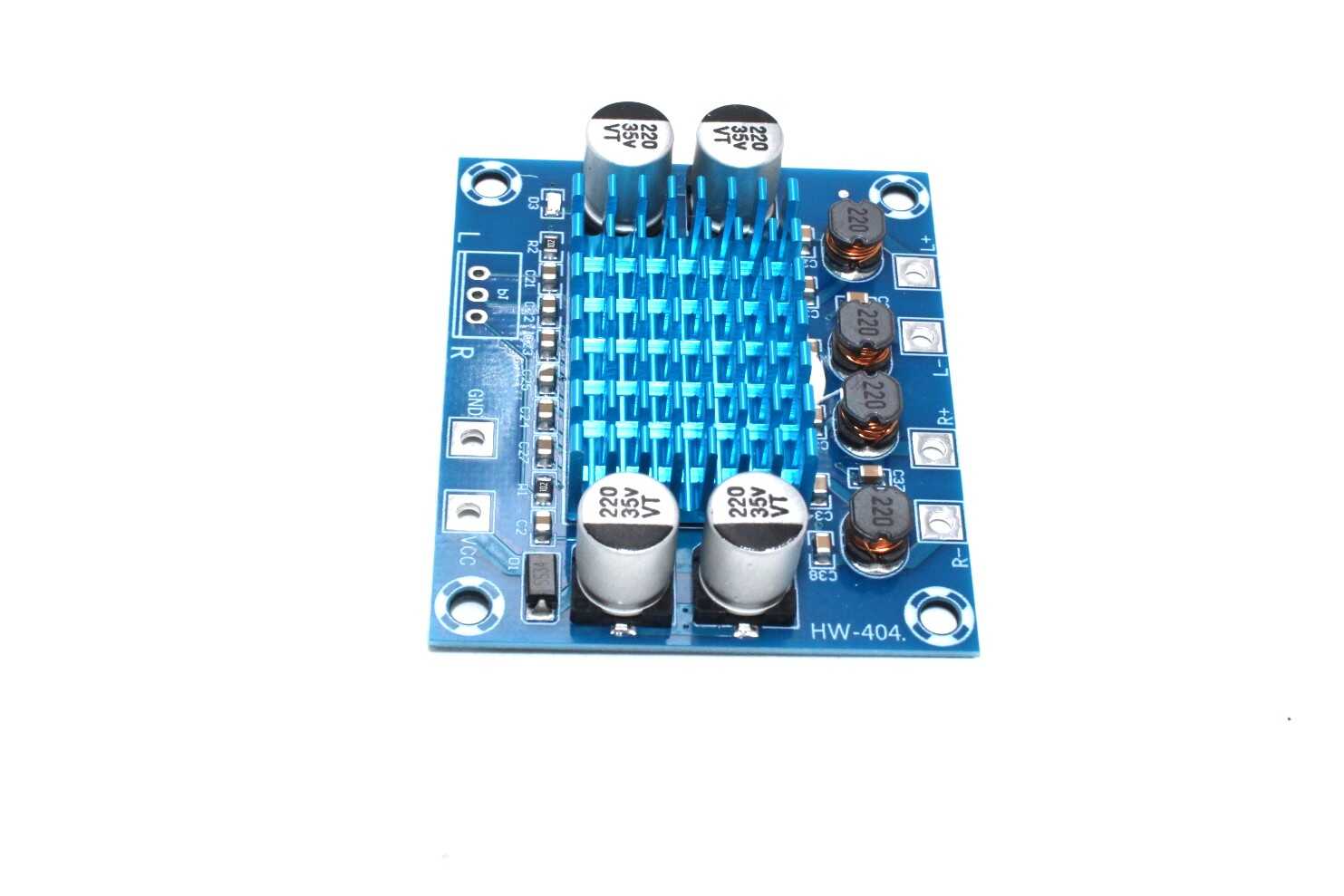

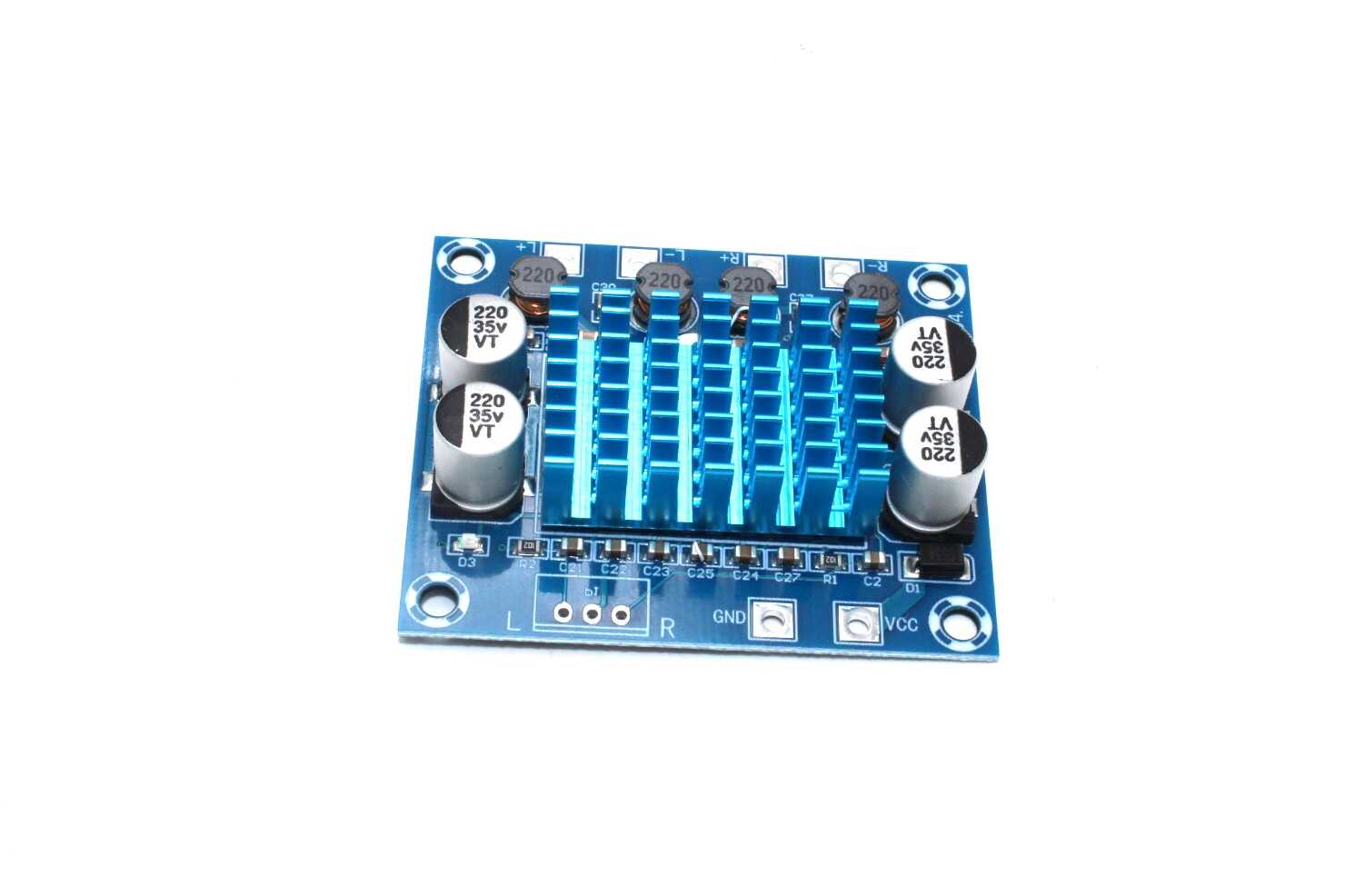

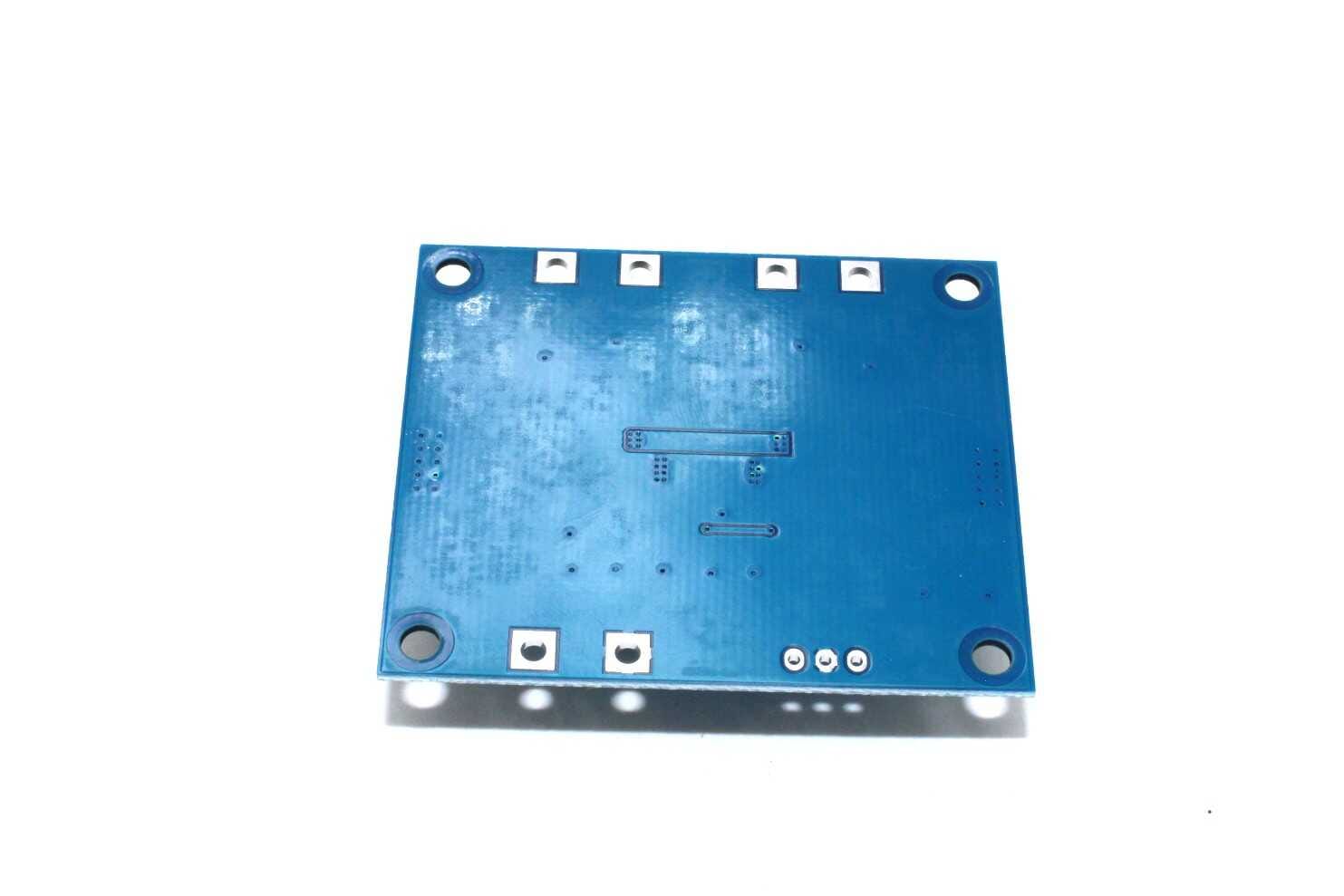

XH-A232 TPA3110 30W+30W Stereo Audio Amplifier Board
Build high-quality audio systems with the XH-A232 TPA3110 Digital Stereo Amplifier Module. Based on the popular TPA3110 Class-D amplifier IC, this compact board offers efficient audio amplification with excellent sound quality and low heat generation.
The board supports a wide DC input voltage range from 8V to 26V (recommended 12V–24V) and can drive 4Ω to 8Ω speakers. Its compact size and high efficiency make it ideal for portable speakers, Bluetooth speaker systems, home audio projects, DIY amplifiers, and multimedia applications.
Features
- Original TPA3110 Class-D audio amplifier IC
- Stereo 2-channel audio output
- Output power up to 30W + 30W
- High efficiency operation with low heat generation
- Wide DC input voltage range
- Excellent sound quality with low distortion
- Built-in protection against over-current and over-temperature
- Compact PCB design for easy integration
- Suitable for DIY and commercial audio projects
Specifications
| Parameter | Value |
|---|---|
| Amplifier IC | TPA3110 |
| Amplifier Type | Class-D |
| Channels | 2.0 Stereo |
| Output Power | 30W + 30W (max) |
| Input Voltage | DC 8V – 26V |
| Recommended Voltage | 12V – 24V |
| Speaker Impedance | 4Ω – 8Ω |
| Signal-to-Noise Ratio | Up to 100dB |
| Current Requirement | >3A Recommended |
| Board Size | Approx. 53 × 45 × 14 mm |
| Weight | Approx. 20–21g |
Applications
- DIY Bluetooth Speakers
- Home Audio Systems
- Multimedia Speaker Projects
- Computer Speakers
- Portable Audio Systems
- Car Audio Projects
- Embedded Audio Solutions
Package Includes
- 1 × XH-A232 TPA3110 30W+30W 2.0 Channel Digital Stereo Audio Power Amplifier Board
